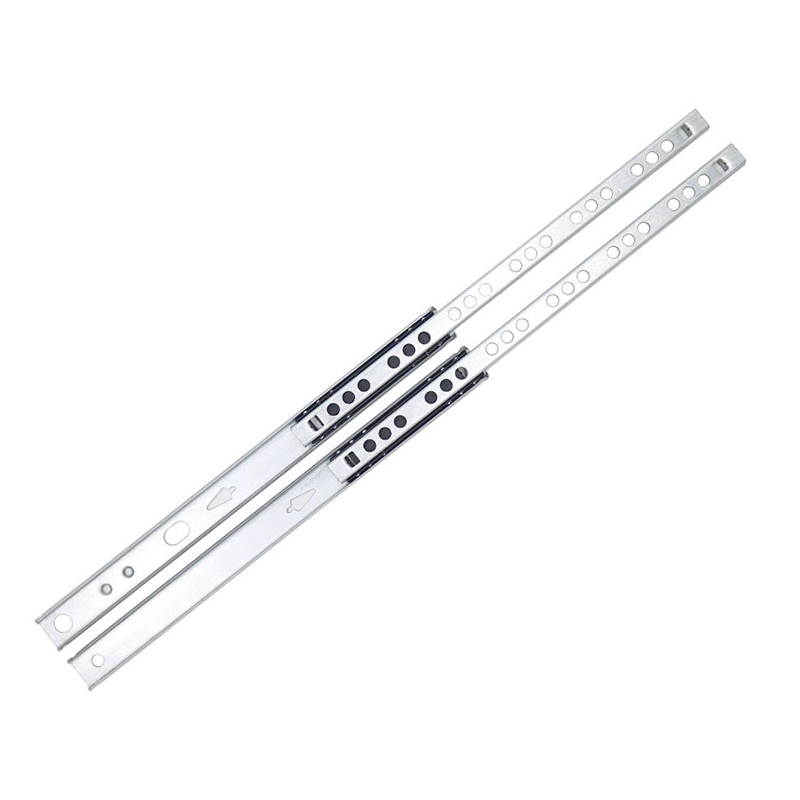

17mm Mini Drawer Slide Two Way

Short Description:

Model No.: YA-1701

- 17mm Mini drawer slide two way, groove/side mounted, 3/4 extension, load bearing capacity 10 KG

- This runner is small, stylish and space-saving, easy to mount

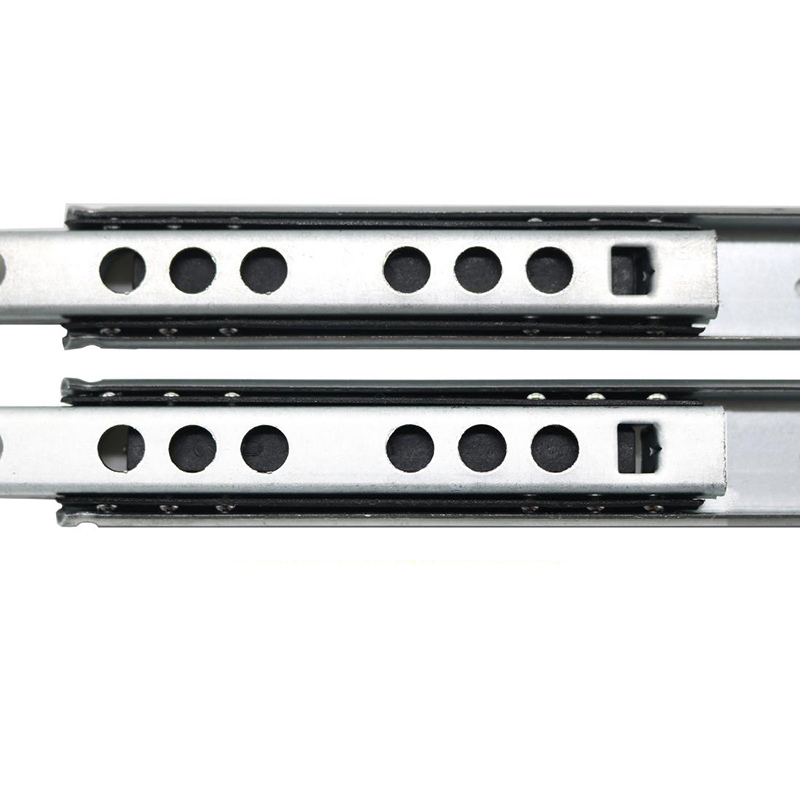

- Ball mounted: guided by means of 2 ball cages, Lateral play is virtually eliminated when groove mounting method is employed

- Precision running, ball mounted single-stage extension.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:

17mm Groove Drawer Runners

Material:

Cold Rolled Steel

Material Thickness:

0.8*0.8mm / 1.0*1.0mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

10 KGS

Cycling:

Over 50,000 times

Size Range:

182-438mm, customize is available

Installation:

Groove/Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

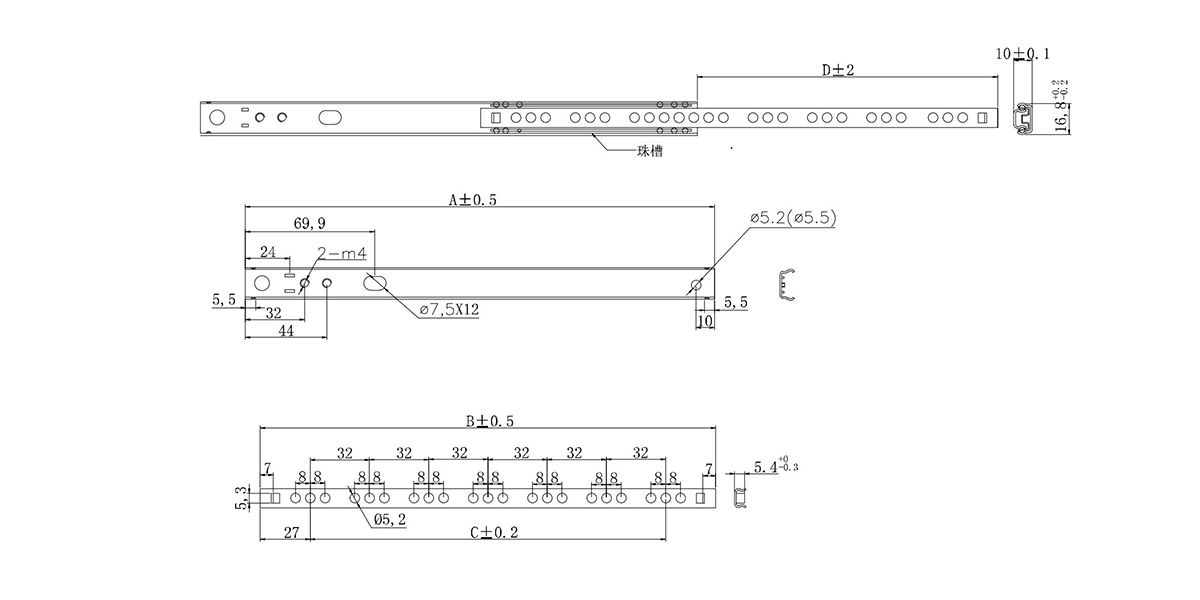

Installation Instruction:

mini ball bearing slide size
MM A B C D BALL RETAINER PACAKAGE
(Set/Carton)
150 150 150 96 102 46*12 BALLS 50
182 182 182 128 134 46*12 BALLS 50
214 214 214 160 142 72*12 BALLS 50
246 246 246 192 172 72*12 BALLS 50
278 278 278 224 204 82*12 BALLS 50
310 310 310 256 226 96*12 BALLS 50
342 342 342 288 244 96*12 BALLS 50
374 374 374 320 276 96*12 BALLS 50
406 406 406 352 308 118*12 BALLS 50
438 438 438 384 318 118*12 BALLS 50

Grooved Drawer Slides, Light Duty Drawer Runner, ball bearing drawer slide
