150mm metal box drawer slide

Short Description:

Model No.: YA-03A150

150mm metal box drawer slide is the easiest type of drawer system. It made by stamping machine. Can use for all type of furniture drawers.The load capacity around 25 KGS and the cycling over 50,000 times. The feature is the roller slide with balance pads, the smooth sliding with low noise, self-related function, pairs of stop bits to prevent the slide-out structure. The surface use advanced spray technology, non-toxic environmentally friendly, effective anti-corrosion, anti-rust.


Product Detail

Product Tags

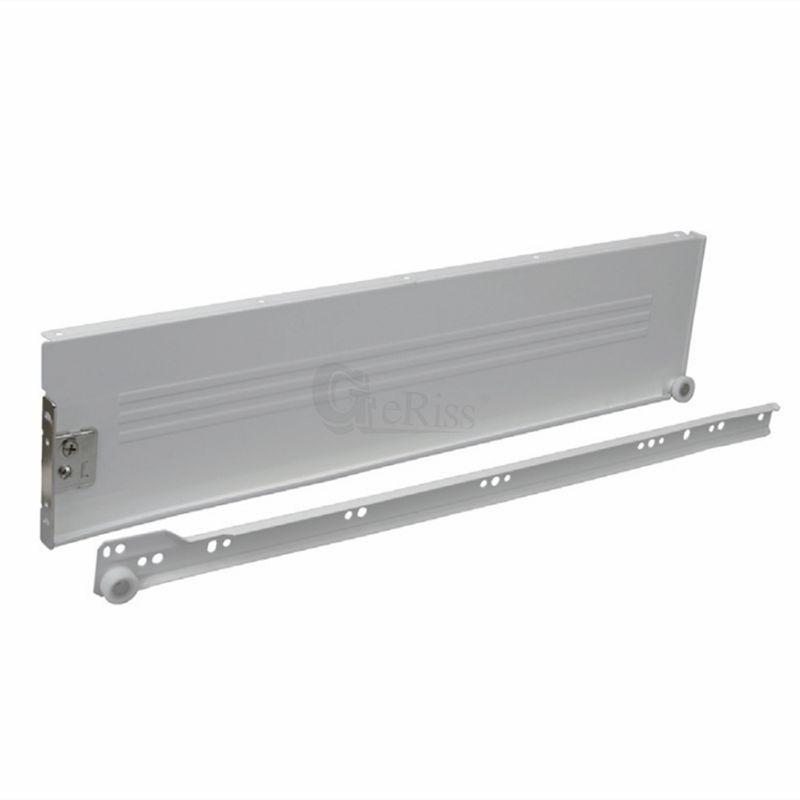

Metal Box Drawer Slide
Metal Box Drawer

Description:

Product Name: Metal Box Drawer Slide
Height: 150 mm
Item No.: YA-03H150
Load Capacity: 25 KG
Size Range: 250 - 550 mm
Thickness: 0.8MM up to 1.2MM
Color: White,Black,Brown,Sliver, Gray or customize is available.
POM-Wheel(Roller): White wheel.
Package: 10 Sets/Ctn, or customize is available.

Product Details:

Drawer Slide Size:

Metal Box Drawer Slide Size

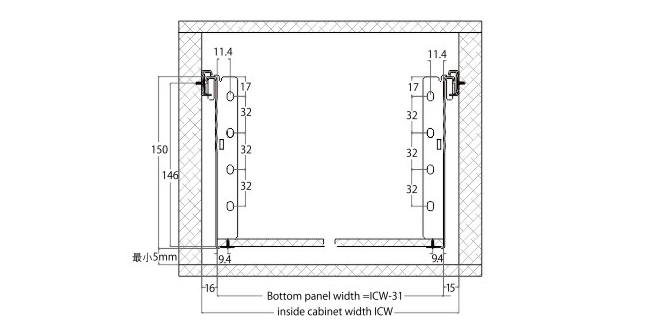

Cabinet Inside Space:

Metal Box Adjust Sytem

Package Information:

Package

Workshop:
